| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 90 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 15~35 days |

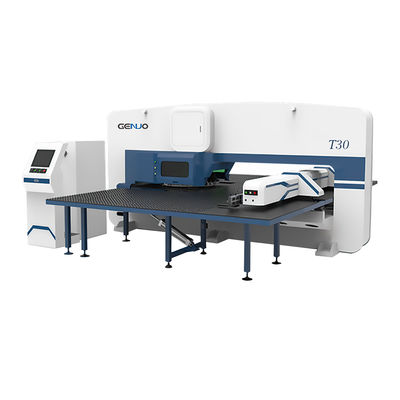

Genuo CNC Mechanical GN-T30 Series Turret Punch Press Holistic welding structure, stress relief from tempering treatment. The strong rigidity and high tonnage ensure the stable accuracy for long time, extend the service life .The advanced and reliable mechanical punching system can automatically select the stroke for materials with different plate thickness, which can be processed with special technology very conveniently.
| Standard Equipment | Optional Equipment |
|---|---|
| ★ O-type welded rigid integral frame | ☆ FAUNC or Siemens CNC Control |
| ★ GENUO CNC Control and servo system | ☆ 16 or 32 full-automatic indexing stations |
| ★ 24 Full-automatic indexing stations | ☆ Clamp Stripping Protection |
| ★ Brush and ball mixed worktable | ☆ Scrap Collection Device |
| ★ Feeding system with high-precision | ☆ Automatic Loading and Unloading |
| ★ Precision wear-resistant turret and tools | ☆ Special thick turrent tooling |
| ★ Floatable Pneumatic Clamps | ☆ Large seamless worktable |
| ★ Bearing,timing belt,drag chain from DE | ☆ Peripheral light curtain protective fence |
| ★ Schneider electrical parts from FR | ☆ Vacuum waste suction device |
| ★ Automatic central lubrication system | ☆ Optional customized colors |
|
Excellent Turret
The standard 24 station inlaid turret ensures the coaxiality of the die, the positioning index of the side hole and the accuracy of the die hole on the rotary table punch, increases the length of the tool guide, prolongs the service life of the die and reduces the maintenance cost. |
|
Machine Frame
Integral welded frame structure, dedicated to turret punch, tempering treatment to reduce stress. It can provide higher parts accuracy, reduce tool wear and noise, improve durability, ensure stable accuracy, extend service life. |
|
Automatic Index Station
The automatic dividing station adopts the unique worm gear structure to ensure the accuracy of positive and negative two-way, and can rotate the material at 360° Angle, which greatly improves the flexibility and efficiency of machine processing. (Optional configuration) |
|
Pneumatic Clamping
Unique design, reduce sheet deformation,contact sensor automatically stop the machine, provide self-protection function. No dead Angle is drilled on the plate, the splint will float automatically, and the fixture will unload automatically when it returns. |
|
Operating Panel
GENUO CNC Control with program software. |
|
|
