| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Payment Method: | L/C, T/T, D/P, D/A |
| Standard Equipment | Optional Equipment |
|---|---|
| ★ O-type welded rigid integral frame | ☆ FAUNC or Siemens CNC Control |
| ★ GENUO CNC Control and servo system | ☆ 16 or 32 full-automatic indexing stations |
| ★ 24 Full-automatic indexing stations | ☆ Clamp Stripping Protection |
| ★ Brush and ball mixed worktable | ☆ Scrap Collection Device |
| ★ Feeding system with high-precision | ☆ Automatic Loading and Unloading |
| ★ Precision wear-resistant turret and tools | ☆ Special thick turrent tooling |
| ★ Floatable Pneumatic Clamps | ☆ Large seamless worktable |
| ★ Bearing,timing belt,drag chain from DE | ☆ Peripheral light curtain protective fence |
| ★ Schneider electrical parts from FR | ☆ Vacuum waste suction device |
| ★ Automatic central lubrication system | ☆ Optional customized colors |

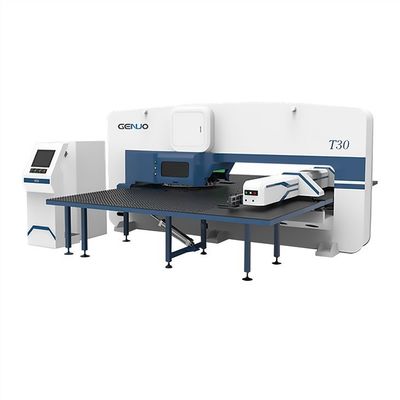

Genuo Brand Turret Punch Press has equipped with 24 station turntable and 2 rotating die positions
Equipped with automatic lubrication system, sheet deformation monitoring device.
Excellent Turret
The standard 24 station inlaid turret
ensures the coaxiality of the die, the
positioning index of the side hole
and the accuracy of the die hole on
the rotary table punch, increases
the length of the tool guide,
prolongs the service life of the die
and reduces the maintenance cost.
Machine Frame
Integral welded frame structure,
dedicated to turret punch, tempering
treatment to reduce stress.
It can provide higher parts accuracy,
reduce tool wear and noise, improve
durability, ensure stable accuracy,
extend service life.
Automatic Index Station
The automatic dividing station adopts
the unique worm gear structure to
ensure the accuracy of positive and
negative two-way, and can rotate the
material at 360° Angle, which greatly
improves the flexibility and efficiency
of machine processing.
(Optional configuration)
Pneumatic Clamping
Unique design, reduce sheet deformation,
contact sensor automatically stop the
machine, provide self-protection function.
No dead Angle is drilled on the plate,
the splint will float automatically, and
the fixture will unload automatically
when it returns.
Operating Panel
GENUO CNC Control with program
software. The operation panel is
simple and easy to understand,
can assist operators, improve
machine productivity.
,
Servo Motor
Linear Guide
Ball Screw
