Advanced And Reliable Servo System,Automatic Selection Of Stroke Based On Material Thickness,Ability To Easily Process Special Crafts Such As Shutters And Knock Down Holes,Constant Pressure Throughout The Whole Trip For High Stamping Quality

Brand:

GENUO

Model:

GN-ES30

Type:

Turret Punch Press

Control System:

Special CNC System Designed For Punch Press By Rexroth

Highlight:

Servo Turret Punch Press

Electric Turret Punch Press

GN-ES30 cnc punch machine

Product Description

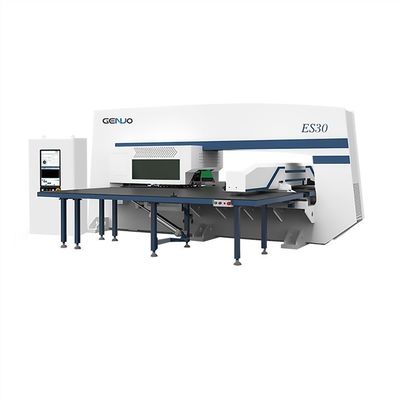

GN-ES30 Series Electric Servo CNC Turret Punch Press 0

Standard Equipment	Optional Equipment
★ O-type welded rigid integral frame	☆ GENUO or Siemens CNC Control
★ Rexroth CNC Control and servo system	☆ 42 Station (Dual Circle+T die base)
★ 24 Full-automatic indexing stations	☆ Clamp Stripping Protection
★ Brush and ball mixed worktable	☆ Scrap Collection Device
★ Auto feeding system with high-precision	☆ Automatic Loading and Unloading
★ Precision wear-resistant turret and tools	☆ Special thick turrent tooling
★ Floatable Pneumatic Clamps	☆ Large seamless worktable
★ Bearing,timing belt,drag chain from DE	☆ Peripheral light curtain protective fence
★ Schneider electrical parts from FR	☆ Vacuum waste suction device
★ Automatic central lubrication system	☆ Optional customized colors

Standard Configuration

Genuo CNC Turret Punch Press has equipped with 32 station turntable and 2 auto indexed station Equipped with

automatic lubrication system, sheet deformation monitoring device.

GN-ES30 Series Electric Servo CNC Turret Punch Press 1

Configuration Details

Direct Drive Servo Motor

The machine is all-electric technology, it

retains the advantages of mechanical transmission structure simple and reliable,

while has better performance than hydraulic transmission, such as less stress, greater

rigidity, improve the quality of work and tool, tool life.

Provides an active push and pull motion in the punch stroke, allowing for more precision production.

Frame Structure Design

Genuo GN-ES30 Series turret punch press adopts integral welded colsed frame,

tempering treatment to reduce stress,

strong rigidity and maximum tonnage

stability.

Long service life, high positioning accuracy, reliability and durability, both environmental protection and energy saving.

Movable Separation Table

Genuo's presses feature a detached frame

and removable table base to prevent plate friction. Even at maximum tonnage,

vibration is not transmitted to the table, improving workpiece accuracy as well as improving component quality.

CNC Control System

Processing graphics real-time display,

intuitive and user-friendly interface,

with a key to return to the reference

point function, you can set a key loading

position. According to the plate thickness automatically adjust the prepressing

height of the punch, improve the

production efficiency.

Ball Screw

The imported Rexroth large lead high precision ball screw and guide rail are imported famous parts, which are controlled by synchronous

servo motor to realize the stability and

improve the machining accuracy during

high speed movement.

Customizable Turret

Standard 32 station inlaid roulette arranged concentrically, increase die guide length,

ensure machining accuracy, and

reduce maintenance cost of turret.

Optional Configuration

42 Station (Dual Circle+T die base)

It can ensure the coaxiality of the die,

prolong the service life of the die,

improve the flexibility and efficiency

of the machine tool processing.

Clamp Stripping Protection

It has good performance, high sealing

degree, easy installation, and has

good protection advantage, size

can be selected.

Scrap Collection Device

Simple and easy to operate, so that

the machine in the production country

to keep clean, automatic processing

and classification.

Automatic Loading and Unloading

It can speed up the standard process

of production, giving production the

opportunity to be more efficient,

leaving room for flexibility,

and saving money.

Quality Characteristics

GN-ES30 Series Electric Servo CNC Turret Punch Press 12

Technical Parameter Tel:400-010-0000

GN-ES30 Series Electric Servo CNC Turret Punch Press 13
