| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Payment Method: | L/C, T/T, D/P, D/A |
We can supply various kinds of press brake tooling clamps. The mainly two types is normal type and fast type.
We also can suppy hydraukc campsIn addition to the rapid clamping of the bending machine mold, it has the function of preventing the clampng or the mod and adjustng te uniorm torce or the moid.
GENUO holds both European style tooling as well as AMADA's latest One Touch style tooling. GENUO GNSP standard fast support.
The patented rear butterfly pressing device can adapt to different types of European standard and Amada type punches.
42CrMo or C45 high frequency quenching process stamping brake tools for durability.

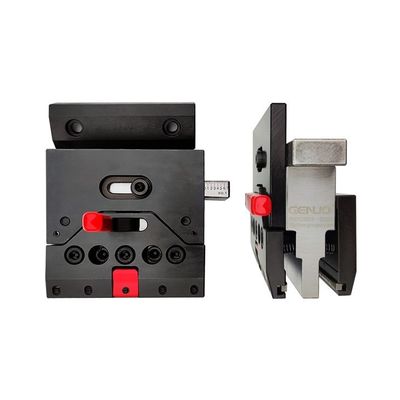

VERSATILE CLAMPING
The GN holds both standard European style punches
and AMADA One Touch style punches allowing fast
and easy tool setup. Slide in either tool and turn
lever to secure punch.
GAPLESS SETUP
The internal adjustment wedge allows the faster punch
holders to be located directly next to each other providing
setup flexibility when using smaller sectionalized punches.
OPERATOR SAFETY
Drop prevention bar prevents punches from falling out
of the punch holder during setup increasing operator
safety. Once the punch is inserted into the clamp, the
punch can be moved to any location along the brake
bed eliminating the possibility of it falling out of
the clamp.
SAFETY GROOVE
A special clamp plate is available which mounts the holder
to the machine utilizing the safety groove on the top potion
of the punch holder. This special clamp plate prevents
holder from dropping when horizontal movement
of clamp is required.
| Description | Tooling Clamp |
| Code# | GN15001 |
| Tool Compatibility | Standard European/AMADA One-Touch |
| Machine Compatibility | Hydraulic Press Brakes |
| Holder Length 150mm | 150mm |
| Effective Height 120mm | 120mm |
| Allowable Tonnage | 1000kN/m(100tons/m) |
Hot Tags: gnsp series press brake clamps, China, suppliers, manufacturers, factory, price, cost, cheap, for sale,
Video
Video
|
|
| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Payment Method: | L/C, T/T, D/P, D/A |
We can supply various kinds of press brake tooling clamps. The mainly two types is normal type and fast type.
We also can suppy hydraukc campsIn addition to the rapid clamping of the bending machine mold, it has the function of preventing the clampng or the mod and adjustng te uniorm torce or the moid.
GENUO holds both European style tooling as well as AMADA's latest One Touch style tooling. GENUO GNSP standard fast support.
The patented rear butterfly pressing device can adapt to different types of European standard and Amada type punches.
42CrMo or C45 high frequency quenching process stamping brake tools for durability.
VERSATILE CLAMPING
The GN holds both standard European style punches
and AMADA One Touch style punches allowing fast
and easy tool setup. Slide in either tool and turn
lever to secure punch.
GAPLESS SETUP
The internal adjustment wedge allows the faster punch
holders to be located directly next to each other providing
setup flexibility when using smaller sectionalized punches.
OPERATOR SAFETY
Drop prevention bar prevents punches from falling out
of the punch holder during setup increasing operator
safety. Once the punch is inserted into the clamp, the
punch can be moved to any location along the brake
bed eliminating the possibility of it falling out of
the clamp.
SAFETY GROOVE
A special clamp plate is available which mounts the holder
to the machine utilizing the safety groove on the top potion
of the punch holder. This special clamp plate prevents
holder from dropping when horizontal movement
of clamp is required.
| Description | Tooling Clamp |
| Code# | GN15001 |
| Tool Compatibility | Standard European/AMADA One-Touch |
| Machine Compatibility | Hydraulic Press Brakes |
| Holder Length 150mm | 150mm |
| Effective Height 120mm | 120mm |
| Allowable Tonnage | 1000kN/m(100tons/m) |
Hot Tags: gnsp series press brake clamps, China, suppliers, manufacturers, factory, price, cost, cheap, for sale,
