| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 7~25 days |
- Products Description _
We can supply various kinds of press brake tooling clamps. The mainly two types is normal type and fast type.
We also can suppy hydraukc campsIn addition to the rapid clamping of the bending machine mold, it has the function of preventing the clampng or the mod and adjustng te uniorm torce or the moid.

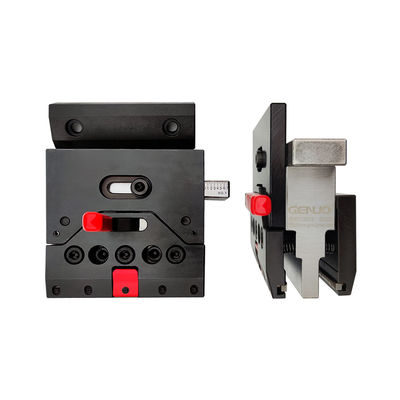

- GN Punch-Holder (Tooling clamp) _
GENUO holds both European style tooling as well as AMADA's latest One Touch style tooling. GENUO GNSP standard fast support.
The patented rear butterfly pressing device can adapt to different types of European standard and Amada type punches.
42CrMo or C45 high frequency quenching process stamping brake tools for durability.
|
|
|
VERSATILE CLAMPING The GN holds both standard European style punches and AMADA One Touch style punches allowing fast and easy tool setup. Slide in either tool and turn lever to secure punch. |
GAPLESS SETUP The internal adjustment wedge allows the faster punch holders to be located directly next to each other providing setup flexibility when using smaller sectionalized punches. |
|
|
|
OPERATOR SAFETY Drop prevention bar prevents punches from falling out of the punch holder during setup increasing operator safety. Once the punch is inserted into the clamp, the punch can be moved to any location along the brake bed eliminating the possibility of it falling out of the clamp. |
SAFETY GROOVE A special clamp plate is available which mounts the holder to the machine utilizing the safety groove on the top potion of the punch holder. This special clamp plate prevents holder from dropping when horizontal movement of clamp is required. |
- Products Configuration _
| Description | Tooling Clamp |
| Code# | GN15001 |
| Tool Compatibility | Standard European/AMADA One-Touch |
| Machine Compatibility | Hydraulic Press Brakes |
| Holder Length 150mm | 150mm |
| Effective Height 120mm | 120mm |
| Allowable Tonnage | 1000kN/m(100tons/m) |
Video
Video
|
|
| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 7~25 days |
- Products Description _
We can supply various kinds of press brake tooling clamps. The mainly two types is normal type and fast type.
We also can suppy hydraukc campsIn addition to the rapid clamping of the bending machine mold, it has the function of preventing the clampng or the mod and adjustng te uniorm torce or the moid.
- GN Punch-Holder (Tooling clamp) _
GENUO holds both European style tooling as well as AMADA's latest One Touch style tooling. GENUO GNSP standard fast support.
The patented rear butterfly pressing device can adapt to different types of European standard and Amada type punches.
42CrMo or C45 high frequency quenching process stamping brake tools for durability.
|
|
|
VERSATILE CLAMPING The GN holds both standard European style punches and AMADA One Touch style punches allowing fast and easy tool setup. Slide in either tool and turn lever to secure punch. |
GAPLESS SETUP The internal adjustment wedge allows the faster punch holders to be located directly next to each other providing setup flexibility when using smaller sectionalized punches. |
|
|
|
OPERATOR SAFETY Drop prevention bar prevents punches from falling out of the punch holder during setup increasing operator safety. Once the punch is inserted into the clamp, the punch can be moved to any location along the brake bed eliminating the possibility of it falling out of the clamp. |
SAFETY GROOVE A special clamp plate is available which mounts the holder to the machine utilizing the safety groove on the top potion of the punch holder. This special clamp plate prevents holder from dropping when horizontal movement of clamp is required. |
- Products Configuration _
| Description | Tooling Clamp |
| Code# | GN15001 |
| Tool Compatibility | Standard European/AMADA One-Touch |
| Machine Compatibility | Hydraulic Press Brakes |
| Holder Length 150mm | 150mm |
| Effective Height 120mm | 120mm |
| Allowable Tonnage | 1000kN/m(100tons/m) |
