Standard Equipment	Optional Equipment
◆ CYBELEC CybTouch 12/Delme DA-58T CNC Control	◇ Delem DA-66T, CybTouch 15T,ESA 875W
◆ Mono block welded rigid to deflection and high tensile steel frame	◇ 2 axis,4 axis,6 axis back gauge options
◆ Twin Electro-Hydraulic Hybrid System	◇ DSP or Lasersafe Laser front guard options
◆ Accurate heavy-duty X,R axis back gauge system	◇ Lasercheck angle detection feedback device
◆ Auto Motorized crowning system	◇ WILA type top and bottom tool clamping system
◆ European-style punch and 4V/2V/1V Dies	◇ Bending tools management cabinet or trolley
◆ Fast punch clamps and movable sliding front support	◇ Special heights, Daylight, Throat Depth are available
◆ GIVI or FAGOR linear encoder	◇ 40~800 Tons and 4~20ft Bending Lengths options
◆ Special integrated system without oil pipeline design	◇ Single/Tandem optional

Dual Pump Control Mixing Technology

GREEN ECO Series CNC Press Brake 40T-300T High Precision 1

Backgauge System

Establishing the right back gauge for your projects will allow for increased part production and precision.From intricate

parts which typically require more axes to large quantities that require more time and therefore increased cost,

the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.

GENUO technicians are happy to assist you with any questions you may have on your project requirements.

2 Axis Back Gauge (X,R)

4 Axis Back Gauge (X,R,Z1,Z2)

6 Axis Back Gauge (X1,X2,R1,R2,Z1,Z2)

WORLD-CLASS HYDRAULIC SYSTEM

All GENUO's press brakes adopt world-class stable hydraulic system. To ensure the stable operation and lasting accuracy of the machine. At the same time, it also has

its own hydraulic proportional synchronization technology, which can be develop and designed for different machines.

GREEN ECO Series CNC Press Brake 40T-300T High Precision 9

GREEN ECO Series CNC Press Brake 40T-300T High Precision 10

GREEN ECO Series CNC Press Brake 40T-300T High Precision 11

• Eco-friendly, saving 65% energy in comparison to standard press brakes. It also uses 95% less oil,which helps reduce manufacturing costs.

• Fast operating press brake using servo motors and highly effcient pump.

• Most accurate, having high bending accuracy between +/- .00003”

• Highest bending effciency is achieved and no pressure is lost through proportional valves.

• Quietest press brake, at a noise level of 63db. (TUV-SUD certifed)

• No oil heat up thanks to the pumping system which does not run when the machine is in stand-by mode.

• Provides fawless bending for small parts at different points.

• Ease of maintenance. Y1,Y2 axes have stand-alone oil tanks.

Auto Crowning Systems

To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for

possible tooling wear to maintain parallel contacting surfaces.CNC crowning systems allow the press brake control to be

pre-programmed with machine characteristics and defection data.

Adjust the calculate and setting accordingly for different characteristics of different materials.

GREEN ECO Series CNC Press Brake 40T-300T High Precision 12

GREEN ECO Series CNC Press Brake 40T-300T High Precision 13

Standard on GENIUS, ECO-GREEN,GAINT, Optional SMART,ESAY

GREEN ECO Series CNC Press Brake 40T-300T High Precision 14

CNC Motorized Crowning

Details and Features

▼TOOLING AND CLAMPING

GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools.

If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.

To help greatly improve your productivity and business benefits.

Promecam /EURO Style

punch Standard on

all series press brake.

Optional other shapes.

Wila NEW STD. Style

punch are optional.

The clamp system needs

to match this style.

AMERICAN /Heavy Style

punch Standard on GAINT.

Optional other shapes.

4V,2V Reversible Dies

T-Shape V Die Standard

on GENIUS, ECO-GREEN.

Optional on SMART,ESAY.

Insert V Die

Optional on GENIUS,

ECO-GREEN,GAINT.

Multi-V Dies

Standard on SMART,ESAY,

GAINT.Optional on GENIUS,

ECO-GREEN.

GREEN ECO Series CNC Press Brake 40T-300T High Precision 23

Upgradeable GENUO One-Key Release Style Or Amada SGRIP Double-Sided Clamps

GENUO One-Key Fast Clamp

Amada SGRIP Punch Holder

Optional Configuration

GREEN ECO Series CNC Press Brake 40T-300T High Precision 26

GREEN ECO Series CNC Press Brake 40T-300T High Precision 27

GREEN ECO Series CNC Press Brake 40T-300T High Precision 28

GREEN ECO Series CNC Press Brake 40T-300T High Precision 29

GREEN ECO Series CNC Press Brake 40T-300T High Precision 30

ECO Techical Specification

GREEN ECO Series CNC Press Brake 40T-300T High Precision 31

GREEN ECO Series CNC Press Brake 40T-300T High Precision 32

Hot Tags: GREEN ECO Series CNC Press Brake, China, suppliers, manufacturers, factory, price, cost, cheap, for sale,

Tags:

Electric CNC Press Brake,

Hydraulic Press Brake,

Press Brake Bending Machine

GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes

Contact Now

CNC Press Brake Bending Machine GENIUS HSC Series CNC Hydraulic Press Brake

Contact Now

Video

WC67Y/K 40T CNC Press Brake Small 1600mm Metal Sheet Bending Machine

Contact Now

Video

220V 380V 415V 440V Hydraulic Servo CNC Press Brake Machine Genius HSC Ultra

Contact Now

Video

Hydraulic Torsion Bar Hydraulic CNC Bending Machine Fully Automatic

Contact Now

Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender

Contact Now

Video

HSC PRO CNC Hydraulic Bending Machine Automatic CNC Press Brake With Delem Control

Contact Now

Video

Wc67Y Small Press Brake NC 40T Torsion Bar Bending Machine

Contact Now

ES Series Pure CNC Electric Servo Press Brake High Precision

Contact Now

Video

High Precision 4+1 Axis Hydraulic Synchronize Servo Bending Machine 3200mm

Contact Now

Video

30T 1600mm WC67Y Mini Press Brake Small NC Bending Machine

Contact Now

PRODUCTS DETAILS

Products

Press Brake

Smart HTC Series CNC Press Brake

Excellent ESC Series CNC Press Brake

Genius HSC Series CNC Press Brake

ECO Green EHC CNC Press Brake

Tandem TPB Series CNC Press Brake

Pure ES Series CNC Press Brake

Laser Cutting Systems

Flash GNST Series Laser Cutting Machine

Power GNET Series Laser Cutting Machine

Versatile GNPT Series Laser Cutting Machine

Cyclone GNAT Series Laser Cutting Machine

Laser Marking Machine

Shearing Machine

HG Series Hydraulic Shearing Machine

HSB Series Hydraulic Shearing Machine

Plate Rolling Machine

MS3R 3 Roller Rolling Machine

HU3R 3 Roller Rolling Machine

HC4R 4 Roller Rolling Machine

Turret Punch Press

GNT30 Series Turret Punch Press

GNES Series Turret Punch Press

Machine Part

Press Brake Tools

Press Brake Clamps

Other Machines

GNGT Series Plasma Cutting Machine

BYG Series Laser Marking Machine

GREEN ECO Series CNC Press Brake 40T-300T High Precision

MOQ:	1
Price:	negotiable
Standard Packaging:	carton box
Payment Method:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

genuo

Document

Product Brochure PDF

Brand:

GENUO

Series:

EHC

Type:

CNC Press Brake

Technology:

Double Pump Control

Hydraulic System:

Highly Integrated

Maintenance:

Low

Leakage:

None

Service Life:

Longer

Servo Motor:

Bi-Direction

Pressure Loss:

None

Efficiency:

Highest Bending

Energy Saving Compared To Standard:

65%

Oil Consumption Reduction:

90%

Operation:

Quiet

Energy Consumption:

Low

Environmentally Friendly:

Auxiliary Bending Devices:

Abundant

Safety Devices:

Abundant

Sheet Metal Production:

High-precision And Complex

Tonnage Options:

40T~300T

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

carton box

Payment Terms:

L/C, T/T, D/P, D/A

Highlight

ECO CNC Press Brake

40T CNC Press Brake

300T bending press

Product Description

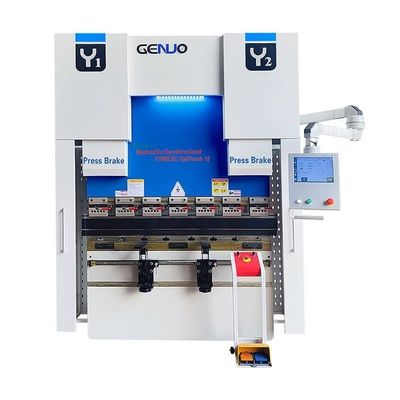

GREEN ECO Series CNC Press Brake
