| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 90 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 15~35 days |
| Standard Equipment | Features |
| ◆ CYBELEC CybTouch 8 CNC Control (X,Y axis) | ◇ Easy bend programming and automatic back gauge |
| ◆ Back gauge with precision linear guide and ball screw | ◇ AC servo motor drive with colored graphics |
| ◆ Ram via double cylinder mechanical positioning | ◇ Angle input with automatic adjustment of bending depth |
| ◆ European-style punch and Multi-V/4V Dies | ◇ Adapt to sheet metal with different thickness |
| ◆ Fast punch clamps and movable front support | ◇ More efficient and variable bending |
| ◆ SIEMENS main motor,Sunny pump,Rexroth Valve | ◇ Powerful and durable bending power |
| ◆ EMB ferrule type pipe connector, NO.K sealing rings | ◇ Minimize oil leakage of the machine |
| ◆ 40~400 Tons and 4~20ft Bending Lengths optional | ◇ Single/Tandem optional |
— Machine Controller—
|
|
| ⊙CYBELEC CybTouch 8 | ⊙Delem DA-41T/42T |
|
High-contrast 7”touch screen, with vivid colors. Simple pages, clear display large keys. simplified software. CybTouch 8P is specifically designed for conventional 2-axes(Y,X) or 3-axes(Y,X,R) CNC press brakes with high integration of functions. Pressure – crowning calculation. |
TCT 7”ｗidescreen colour LCD display Program memory of 100 programs 25 steps per program with tool library. DA-41T, compact touch CNC for 2-axes(Y,X) conventional press brakes. DA-42T, compact touch CNC for 3+1 axes conventional press brakes Y-X-R-Crowning |
—Tooling And Clamps—
GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools.
If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.
To help greatly improve your productivity and business benefits.
Upgradeable GENUO One-Key Release Style Or Amada SGRIP Double-Sided Clamps
GENUO Standard Quick Clamp
GENUO One-Key Fast Clamp
— Backgauge System—
Establishing the right back gauge for your projects will allow for increased part production and precision.From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost, the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.
GENUO technicians are happy to assist you with any questions you may have on your project requirements.
1 Axis Back Gauge (X)
2 Axis Back Gauge (X,R)
— Configuration Details—
| ▼Stable Electrical Cabinet | ▼Superior Hydraulic System | ▼Low Noise / Powerful Force |
|
Durable France Schneider electrics ensure the stableoperation of the machine. Reasonable line connection and arrangement greatly reduces the failure rate. The integrated control module of hydraulic valve group makes the sliding block move smoothly and accurately. And the operator and all parts of the machine played a good protection. |
Integrated Rexroth hydraulic system, quick response. The low failure rate makes the machine run safely, efficiently and stably. The whole series of standard is equipped with galvanized cold drawn pipe and German EMB ferrule type pipe joint. Reduce the risk of oil leakage by 50% compared with rubber and welded seamless tubing. And in can be longer service life. |
Using Germany Siemens main motor and USA SUNNY or FIRST gear oil pump guarantee the machine service life and improve the machine working stability. Reasonable matching makes the machine burst out strong and lasting pressure. At the same time, the special coupling device also greatly reduces the noise of the machine in the process of running. |
— Optional Configuration—
|
— HTC PRO Techical Specification—
| A | B | D | E | C | |||||
| Model | Nominal Pressure | Length of Table | Distance Between Columns | Throat Death | Open Height | Ram Strokes | Motor Power | Approx Weight | Overall Dimension |
| (KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | (kg) | (L x W x H)(mm) | |
| 30T/1600 | 300 | 1600 | 1250 | 200 | 220 | 80 | 3 | 1500 | 1650*1200*1700 |

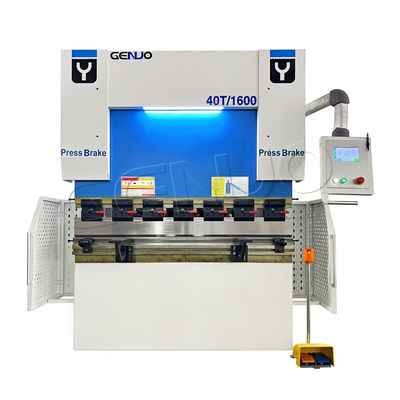

| 40T/1600 | 400 | 1600 | 1250 | 200 | 240 | 100 | 4 | 2600 | 2000*1200*1900 |
| 40T/2500 | 400 | 2500 | 2030 | 250 | 340 | 100 | 4 | 3000 | 2500*1200*1900 |
| 63T/2500 | 630 | 2500 | 2050 | 250 | 340 | 120 | 5.5 | 4000 | 2500*1350*2100 |
| 63T/3200 | 630 | 3200 | 2510 | 250 | 340 | 120 | 5.5 | 4800 | 3200*1350*2100 |
| 80T/2500 | 800 | 2500 | 2050 | 250 | 350 | 120 | 5.5 | 4500 | 2500*1400*2150 |
| 80T/3200 | 800 | 3200 | 2510 | 250 | 350 | 120 | 5.5 | 5500 | 3200*1400*2150 |
| 100T/2500 | 1000 | 2500 | 2050 | 320 | 380 | 120 | 7.5 | 5000 | 2500*1500*2200 |
| 100T/3200 | 1000 | 3200 | 2510 | 320 | 380 | 120 | 7.5 | 6500 | 3200*1500*2300 |
| 100T/4000 | 1000 | 4000 | 3100 | 320 | 380 | 120 | 7.5 | 7600 | 4000*1500*2400 |
| 125T/3200 | 1250 | 3200 | 2510 | 320 | 380 | 120 | 7.5 | 7000 | 3200*1600*2350 |
| 125T/4000 | 1250 | 4000 | 3100 | 320 | 380 | 120 | 7.5 | 8500 | 4000*1600*2450 |
| 160T/2500 | 1600 | 2500 | 2050 | 320 | 450 | 200 | 11 | 8000 | 2500*1650*2700 |
| 160T/3200 | 1600 | 3200 | 2510 | 320 | 450 | 200 | 11 | 10000 | 3200*1650*2800 |
| 160T/4000 | 1600 | 4000 | 3100 | 320 | 450 | 200 | 11 | 11000 | 4000*1650*2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 450 | 200 | 11 | 14000 | 5000*1750*3100 |
| 160T/6000 | 1600 | 6000 | 4600 | 320 | 450 | 200 | 11 | 17000 | 6000*1750*3300 |
| 200T/3200 | 2000 | 3200 | 2600 | 320 | 540 | 250 | 15 | 13000 | 3200*1900*3100 |
| 200T/4000 | 2000 | 4000 | 3300 | 320 | 540 | 250 | 15 | 14500 | 4000*1900*3100 |
| 250T/3200 | 2500 | 3200 | 2600 | 400 | 580 | 250 | 18.5 | 17000 | 3200*2100*3150 |
| 250T/4000 | 2500 | 4000 | 3300 | 400 | 580 | 250 | 18.5 | 18500 | 4000*2100*3150 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 580 | 250 | 18.5 | 22000 | 5000*2100*3200 |
| 250T/6000 | 2500 | 6000 | 4500 | 400 | 580 | 250 | 18.5 | 25500 | 6000*2100*3200 |
| 300T/3200 | 3000 | 3200 | 2600 | 400 | 580 | 250 | 18.5 | 20500 | 3200*2200*3200 |
| 300T/4000 | 3000 | 4000 | 3300 | 400 | 580 | 250 | 18.5 | 22500 | 4000*2200*3200 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 580 | 250 | 18.5 | 25000 | 5000*2200*3200 |
| 300T/6000 | 3000 | 6000 | 4600 | 400 | 580 | 250 | 18.5 | 27500 | 6000*2200*3200 |
| 400T/4000 | 4000 | 4000 | 3300 | 400 | 580 | 250 | 22 | 26500 | 4000*2400*3200 |
| 400T/5000 | 4000 | 5000 | 4000 | 400 | 580 | 250 | 22 | 31500 | 5000*2400*3200 |
| 400T/6000 | 4000 | 6000 | 4400 | 400 | 580 | 250 | 22 | 36000 | 6000*2400*3200 |
| 500T/4000 | 5000 | 4000 | 3300 | 500 | 620 | 320 | 30 | 31000 | 4000*2650*3200 |
| 500T/5000 | 5000 | 5000 | 4000 | 500 | 620 | 320 | 30 | 36500 | 5000*2650*3200 |
| 500T/6000 | 5000 | 6000 | 4410 | 500 | 620 | 320 | 30 | 43500 | 6000*2700*3200 |
| 500T/7000 | 5000 | 7000 | 5400 | 500 | 620 | 320 | 30 | 53000 | 7000*2700*3200 |
| 600T/4000 | 6000 | 4000 | 3300 | 500 | 620 | 320 | 37 | 42500 | 4000*2700*3200 |
| 600T/5000 | 6000 | 5000 | 4000 | 500 | 620 | 320 | 37 | 48000 | 5000*2700*3250 |
| 600T/6000 | 6000 | 6000 | 4600 | 500 | 620 | 320 | 37 | 53500 | 6000*2700*3300 |
| 600T/7000 | 6000 | 7000 | 5400 | 500 | 620 | 320 | 37 | 60000 | 7000*2900*3500 |
Video
Video
Video
Video
|
|
