| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 90 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 15~35 days |
- Products Description -

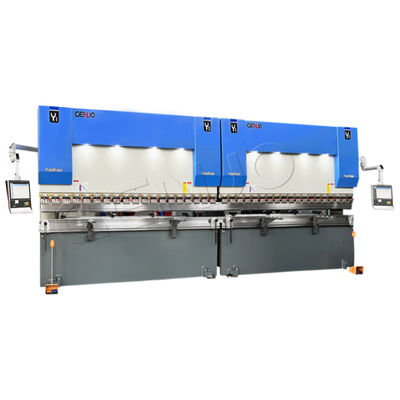

Genuo Tandem TPB series CNC synchronous series press brake adopts 2 sets of WE67K Pro series CNC press brake of the same specification, which is suitable for bending longer sheets, especially the sheets with a length of more than 8 meters. The 2 machines can bend independently, with high production efficiency. The excellent double motor linkage synchronization device can be used to process ultra-long workpieces. It can also be operated separately to improve production efficiency. The well-known brand DELEM controller is used, and the defect compensation device is also installed. In addition, the machine can be customized according to customer requirements, different models can also be combined in series selection, it can work together on 2 different sizes of machines through reasonable design bending longer parts.
WE67K Configuration Details:
| Standard Equipment | Optional Equipment |
| ◆ CYBELEC CybTouch 12 CNC Control | ◇ Delem DA-58T,ESA S640,DA-66T,ETC-16T |
| ◆ Mono block welded rigid to deflection and high tensile steel frame | ◇ 2 axis back gauge with R-axis |
| ◆ High precision Y1,Y2 axis closed-loop synchronized feedback | ◇ Z1,Z2 Joy stick control back gauge fingers |
| ◆ Accurate heavy-duty X axis back gauge system | ◇ DSP or SDKELI Laser front guard options |
| ◆ Auto Motorized crowning system/Hydraulic cylinder crwoning | ◇ Energy saving and low noise main servo motor drive |
| ◆ European-style punch and 4V/2V/1V Dies | ◇ WILA type top and bottom tool clamping system |
| ◆ Fast punch clamps and movable sliding front support | ◇ Bending tools management cabinet or trolley |
| ◆ BOSCH Rexroth hydraulic system,GIVI linear encoder | ◇ Special heights, Daylight, Throat Depth are available |
| ◆ SIEMENS main motor,Sunny pump,Schneider Electric | ◇ 40~400 Tons and 4~20ft Bending Lengths options |
| ◆ EMB ferrule type pipe connector, NO.K sealing rings | ◇ Single/Tandem/Trio optional |
- Main machine Configuration -
|
DELEM DA-53T CNC System Control :
↙ 2. Crowning control and Up to 4 axes (Y1,Y2 +2 aux axs)
↙ 3. Tool / material /product and Profile-53TL offline software
↙ 4. library Servo and frequency inverter control and Integrated valve amplifier
↙ 5. Advanced Y-axis control and algorithms for closed-loop as well as open-loop valves. ↙ 6. TandemLink (option) and USB memory stick interfacing |
|
The Backguage System :
Establishing the right back gauge for your projects will allow for increased part production and precision.
From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost, the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.
GENUO technicians are happy to assist you with any questions you may have on your project requirements. |
|
CNC Auto Crowning Systems :
To confrm a constant bend angle, manual or CNC crowning is essential which will offsetpotential deviations and allow for possible tooling wear to maintain parallel contacting surfaces.
CNC crowning systems allow the press brake control to be pre-programmed with machinecharacteristics and defection data. Adjust the calculate and setting accordingly for different characteristics of different materials. |
|
Genuo fast clamping systems and tools :
1. Genuo Promecam /EURO Style presses are standard for all series of press brakes. 2. Safe and fast 3. Upgradeable GENUO One-Key Double-Sided Or Amada SGRIP Double-Sided Clamps
GENUO offers a variety of tool solutions to meet your different production needs. Our engineers will customize special tools for each workpiece to help you greatly increase productivity and business benefits. |
|
|
|
|
|
Linear Encoder Feedback The deformation is measured accurately and compensated |
Stable Electrical Cabinet Durable France Schneider electrics ensure the stable operation |
Superior Hydraulic System Integrated Rexroth hydraulic system, quick response. |
Powerful Force guarantee the machine service life and improve the machine |
- Optional Configuration -
|
|
|
|
LASER Safety Guards
DSP LASER protects the press brake operator from the danger of crushing that can take place accidentally between the moving part of the machine and the fixed one.It assures to carry out the machine working cycle penalizing its execution time in the least.
|
Auto Tool Clamping System WILA'S state of the art Clamping systems can offer the ultimate solution when it comes to efficiently changing tools both hydraulical and Pneumatic. Accuracy and ergonomicshave been coordinated to realize the highest level of productivity.
|
CNC Sheet Follower
This CNC bending support suitable for all kinds of large sheet metal, especially thin metal sheet. Perfect to maintain synchronization with the sheet during the bending process,improves bending efficiency and reduces operator risk. |
- Products Parameter -
| Model |
Nominal Pressure (KN) |
Length of Table (mm) |
Distance Between Columns (mm) |
Throat Death (mm) |
Open Height (mm) |
Ram Strokes (mm) |
Motor Power (kw) |
Approx Weight (kg) |
Overall Dimension (L x W x H)(mm) |
| 40T/1600 | 400 | 1600 | 1250 | 300 | 420 | 150 | 4 | 3000 | 1950*1750*2350 |
| 80T/2500 | 800 | 2500 | 1960 | 320 | 480 | 200 | 5.5 | 5500 | 3850*1850*2550 |
| 100T/3200 | 1000 | 3200 | 2600 | 400 | 600 | 320 | 7.5 | 8500 | 3850*1850*2600 |
| 125T/4000 | 1250 | 4000 | 3200 | 400 | 600 | 320 | 11 | 10000 | 4610*1850*2700 |
| 160T/3200 | 1600 | 3200 | 2600 | 400 | 600 | 320 | 11 | 10500 | 3900*1900*2600 |
| 200T/4000 | 2000 | 4000 | 3200 | 400 | 600 | 320 | 15 | 14000 | 4700*1900*2700 |
| 600T/6000 | 6000 | 6000 | 4900 | 500 | 600 | 320 | 45 | 55000 | 6500*2910*5100 |
Need to see more models,Welcome to contact us!→ https://www.genuogroup.com/contact-us
Video
Video
Video
Video
|
|
| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 90 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 15~35 days |
- Products Description -
Genuo Tandem TPB series CNC synchronous series press brake adopts 2 sets of WE67K Pro series CNC press brake of the same specification, which is suitable for bending longer sheets, especially the sheets with a length of more than 8 meters. The 2 machines can bend independently, with high production efficiency. The excellent double motor linkage synchronization device can be used to process ultra-long workpieces. It can also be operated separately to improve production efficiency. The well-known brand DELEM controller is used, and the defect compensation device is also installed. In addition, the machine can be customized according to customer requirements, different models can also be combined in series selection, it can work together on 2 different sizes of machines through reasonable design bending longer parts.
WE67K Configuration Details:
| Standard Equipment | Optional Equipment |
| ◆ CYBELEC CybTouch 12 CNC Control | ◇ Delem DA-58T,ESA S640,DA-66T,ETC-16T |
| ◆ Mono block welded rigid to deflection and high tensile steel frame | ◇ 2 axis back gauge with R-axis |
| ◆ High precision Y1,Y2 axis closed-loop synchronized feedback | ◇ Z1,Z2 Joy stick control back gauge fingers |
| ◆ Accurate heavy-duty X axis back gauge system | ◇ DSP or SDKELI Laser front guard options |
| ◆ Auto Motorized crowning system/Hydraulic cylinder crwoning | ◇ Energy saving and low noise main servo motor drive |
| ◆ European-style punch and 4V/2V/1V Dies | ◇ WILA type top and bottom tool clamping system |
| ◆ Fast punch clamps and movable sliding front support | ◇ Bending tools management cabinet or trolley |
| ◆ BOSCH Rexroth hydraulic system,GIVI linear encoder | ◇ Special heights, Daylight, Throat Depth are available |
| ◆ SIEMENS main motor,Sunny pump,Schneider Electric | ◇ 40~400 Tons and 4~20ft Bending Lengths options |
| ◆ EMB ferrule type pipe connector, NO.K sealing rings | ◇ Single/Tandem/Trio optional |
- Main machine Configuration -
|
DELEM DA-53T CNC System Control :
↙ 2. Crowning control and Up to 4 axes (Y1,Y2 +2 aux axs)
↙ 3. Tool / material /product and Profile-53TL offline software
↙ 4. library Servo and frequency inverter control and Integrated valve amplifier
↙ 5. Advanced Y-axis control and algorithms for closed-loop as well as open-loop valves. ↙ 6. TandemLink (option) and USB memory stick interfacing |
|
The Backguage System :
Establishing the right back gauge for your projects will allow for increased part production and precision.
From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost, the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.
GENUO technicians are happy to assist you with any questions you may have on your project requirements. |
|
CNC Auto Crowning Systems :
To confrm a constant bend angle, manual or CNC crowning is essential which will offsetpotential deviations and allow for possible tooling wear to maintain parallel contacting surfaces.
CNC crowning systems allow the press brake control to be pre-programmed with machinecharacteristics and defection data. Adjust the calculate and setting accordingly for different characteristics of different materials. |
|
Genuo fast clamping systems and tools :
1. Genuo Promecam /EURO Style presses are standard for all series of press brakes. 2. Safe and fast 3. Upgradeable GENUO One-Key Double-Sided Or Amada SGRIP Double-Sided Clamps
GENUO offers a variety of tool solutions to meet your different production needs. Our engineers will customize special tools for each workpiece to help you greatly increase productivity and business benefits. |
|
|
|
|
|
Linear Encoder Feedback The deformation is measured accurately and compensated |
Stable Electrical Cabinet Durable France Schneider electrics ensure the stable operation |
Superior Hydraulic System Integrated Rexroth hydraulic system, quick response. |
Powerful Force guarantee the machine service life and improve the machine |
- Optional Configuration -
|
|
|
|
LASER Safety Guards
DSP LASER protects the press brake operator from the danger of crushing that can take place accidentally between the moving part of the machine and the fixed one.It assures to carry out the machine working cycle penalizing its execution time in the least.
|
Auto Tool Clamping System WILA'S state of the art Clamping systems can offer the ultimate solution when it comes to efficiently changing tools both hydraulical and Pneumatic. Accuracy and ergonomicshave been coordinated to realize the highest level of productivity.
|
CNC Sheet Follower
This CNC bending support suitable for all kinds of large sheet metal, especially thin metal sheet. Perfect to maintain synchronization with the sheet during the bending process,improves bending efficiency and reduces operator risk. |
- Products Parameter -
| Model |
Nominal Pressure (KN) |
Length of Table (mm) |
Distance Between Columns (mm) |
Throat Death (mm) |
Open Height (mm) |
Ram Strokes (mm) |
Motor Power (kw) |
Approx Weight (kg) |
Overall Dimension (L x W x H)(mm) |
| 40T/1600 | 400 | 1600 | 1250 | 300 | 420 | 150 | 4 | 3000 | 1950*1750*2350 |
| 80T/2500 | 800 | 2500 | 1960 | 320 | 480 | 200 | 5.5 | 5500 | 3850*1850*2550 |
| 100T/3200 | 1000 | 3200 | 2600 | 400 | 600 | 320 | 7.5 | 8500 | 3850*1850*2600 |
| 125T/4000 | 1250 | 4000 | 3200 | 400 | 600 | 320 | 11 | 10000 | 4610*1850*2700 |
| 160T/3200 | 1600 | 3200 | 2600 | 400 | 600 | 320 | 11 | 10500 | 3900*1900*2600 |
| 200T/4000 | 2000 | 4000 | 3200 | 400 | 600 | 320 | 15 | 14000 | 4700*1900*2700 |
| 600T/6000 | 6000 | 6000 | 4900 | 500 | 600 | 320 | 45 | 55000 | 6500*2910*5100 |
Need to see more models,Welcome to contact us!→ https://www.genuogroup.com/contact-us
