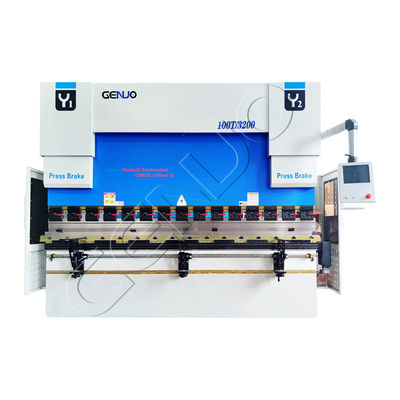

GENUO Genius HSC series CNC press brake adopts integral processing and tempering ultra-high strength frame. The CNC control system can independently and accurately control Y1 and Y2 axes to make the ram run synchronously.The advanced servo proportional valve ensures high bending accuracy and stability through real-time feedback of grating ruler. Large stroke and daylight combined with multi axis optional high-precision back guiding rule system can realize more flexible bending size and angle.The multi-functional CNC control can automatically calculate the pressure, crowning and unfolding size according to the length and thickness of the workpiece.
There are also 2D and 3D image editing and demonstration options to make bending easier and more efficient. This is the most mainstream and popular cost-effective CNC press brake in the market. 40T ~ 800T optional.
| Standard Equipment |
Optional Equipment |
| ◆ Delem DA-53T or CYBELEC CybTouch 12 CNC Control | ◇ DA-58T DA-66T DA-69T , CybTouch 15 ,ESA S875 |
| ◆ Mono block welded rigid to deflection and high tensile steel frame | ◇ 5 axis back gauge with R-axis |
| ◆ High precision Y1,Y2 axis closed-loop synchronized feedback | ◇ Z1,Z2 Joy stick control back gauge fingers |
| ◆ Accurate heavy-duty X ,R axis back gauge system | ◇ DSP or SDKELI Laser front guard options |
| ◆ Auto Motorized crowning system/Hydraulic cylinder crwoning | ◇ Energy saving and low noise main servo motor drive |
| ◆ European-style punch and 4V/2V Dies | ◇ WILA type top and bottom tool clamping system |
| ◆ Fast punch clamps and movable sliding front support | ◇ Bending tools management cabinet or trolley |
| ◆ BOSCH Rexroth hydraulic system,GIVI linear encoder | ◇ Special heights, Daylight, Throat Depth are available |
| ◆ SIEMENS main motor,FIRST pump,Schneider Electric | ◇ 40~400 Tons and 4~20ft Bending Lengths options |
| ◆ EMB ferrule type pipe connector, NO.K sealing rings | ◇ Single/Tandem/Trio optional |
|
⊙CYBELEC CybTouch 12
High-contrast vivid colors touch-screen TouchProfile 2D graphic part creation function.Simple pages, clear display. 4 +1 axes control (Y1-Y2-X-R-Crowning) |
⊙Delem DA-53T
TCT 7”ｗidescreen colour LCD display Program memory of 100 programs 25 steps per program with tool library. (Y,X) conventional press brakes. DA-42T, compact touch CNC for 3+1 axes Crowning. |
⊙ESA VIS-630
The most powerful CNC in its class. 10 ”color touch screen. Up to 4+1 axes High level performance in an economic, Advanced graphic prog-ramming for greater ease of use sophisticated algorithms to make the most of the machines in all applications. |
|
▼Rigid Frame Construction
GENUO have vast experience with R&D and designing components to very tight tolerances with SOLIDWORKS ,CAD modelling techniques,and that CAE, ANSYS,SOLIDWORKS used as the method to analyze the linear static construction, stressand deformation for machine frames. So for complicated structures, highly com-plex loadings and transient modelling. The foundation of all GENUO press brakes is a solid,monoblock frame made from high-yield steel. |
▼Proportional Control
German Bosch Rexroth integrated "hydraulic system block", of hydraulic fluid. |
▼Linear Encoder Feedback
The deformation is measured accurately |
Establishing the right back gauge for your projects will allow for increased part production and precision. From intricate parts which typically require more axes to large quantities that require more time and there foreincreased cost, the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.
GENUO technicians are happy to assist you with any questions you may have on your project requirements.
To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for possible tooling wear to maintain parallel contacting surfaces.CNC crowning systems allow the press brake control to be pre-programmed with machine characteristics and defection data.
Adjust the calculate and setting accordingly for different characteristics of different materials.
GENUO provides a variety of tooling solutions to meet your different production needs. Not only that,we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.
To help greatly improve your productivity and business benefits.
|
▼Stable Electrical Cabinet
Durable France Schneider electrics ensure the stableoperation of the machine. |
▼Superior Hydraulic System
Integrated Rexroth hydraulic system, quick |
▼Low Noise and Powerful Force
Using Germany Siemens main motor and |
| A | B | D | E | C | |||||
| Model | Nominal Pressure | Length of Table | Distance Between Columns | Throat Death | Open Height | Ram Strokes | Motor Power | Approx Weight | Overall Dimension |
| (KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | (kg) | (L x W x H)(mm) | |
| 40T/1600 | 400 | 1600 | 1300 | 300 | 420 | 150 | 4 | 3000 | 1950*1750*2350 |
| 63T/2500 | 630 | 2500 | 2000 | 320 | 420 | 150 | 5.5 | 4800 | 2850*1750*2350 |
| 80T/2500 | 800 | 2500 | 2000 | 350 | 480 | 200 | 7.5 | 5800 | 2850*1850*2450 |
| 100T2500 | 1000 | 2500 | 2000 | 400 | 480 | 200 | 7.5 | 6500 | 2850*1850*2500 |
| 100T/3200 | 1000 | 3200 | 2700 | 400 | 480 | 200 | 7.5 | 8500 | 3850*1850*2600 |
| 125T/2500 | 1250 | 2500 | 2000 | 400 | 480 | 200 | 7.5 | 7600 | 3000*1850*2500 |
| 125T/3200 | 1250 | 3200 | 2700 | 400 | 480 | 200 | 11 | 9000 | 3850*1850*2600 |
| 125T/4000 | 1250 | 4000 | 3200 | 400 | 480 | 200 | 11 | 10000 | 4610*1850*2600 |
| 160T/3200 | 1600 | 3200 | 2700 | 400 | 480 | 200 | 11 | 10500 | 3900*1900*2600 |
| 160T/4000 | 1600 | 4000 | 3200 | 400 | 480 | 200 | 11 | 12000 | 4650*1900*2700 |
| 200T/3200 | 2000 | 3200 | 2700 | 400 | 480 | 200 | 15 | 12000 | 3900*1900*2700 |
| 200T/4000 | 2000 | 4000 | 3200 | 400 | 480 | 200 | 15 | 14000 | 4700*1900*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 400 | 480 | 200 | 15 | 18000 | 5800*1900*2900 |
| 200T/6000 | 2000 | 6000 | 4900 | 400 | 480 | 200 | 15 | 22000 | 6800*1900*3000 |
| 250T/3200 | 2500 | 3200 | 2700 | 400 | 520 | 250 | 18.5 | 14500 | 3900*2100*2800 |
| 250T/4000 | 2500 | 4000 | 3200 | 400 | 520 | 250 | 18.5 | 16500 | 4700*2100*2900 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 520 | 250 | 18.5 | 20000 | 5800*2100*3000 |
| 250T/6000 | 2500 | 6000 | 4900 | 500 | 520 | 250 | 18.5 | 24000 | 6500*2100*3100 |
| 320T/3200 | 3200 | 3200 | 2700 | 400 | 520 | 250 | 22 | 17000 | 4000*2100*3000 |
| 320T/4000 | 3200 | 4000 | 3200 | 400 | 520 | 250 | 22 | 20000 | 4800*2200*3200 |
| 320T/5000 | 3200 | 5000 | 4000 | 500 | 520 | 250 | 22 | 25000 | 5800*2200*3400 |
| 320T/6000 | 3200 | 6000 | 4900 | 500 | 520 | 250 | 22 | 30000 | 6500*2200*3600 |
| 400T/4000 | 4000 | 4000 | 3200 | 500 | 600 | 320 | 30 | 26000 | 4800*2400*3500 |
| 400T/5000 | 4000 | 5000 | 4000 | 500 | 600 | 320 | 30 | 32000 | 5500*2400*3600 |
| 400T/6000 | 4000 | 6000 | 4900 | 500 | 600 | 320 | 30 | 38000 | 6500*2400*3800 |
| 500T/4000 | 5000 | 4000 | 3200 | 500 | 600 | 320 | 37 | 30000 | 4800*2600*3600 |
| 500T/5000 | 5000 | 5000 | 4000 | 500 | 600 | 320 | 37 | 39000 | 5500*2600*3800 |
| 500T/6000 | 5000 | 6000 | 4900 | 500 | 600 | 320 | 37 | 50000 | 6500*2600*4000 |
