| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton box |
| Delivery Period: | 90 days |
| Payment Method: | L/C, T/T, D/P, D/A |
| Supply Capacity: | 1 Set/Sets Every 15~35 days |
New Machine description

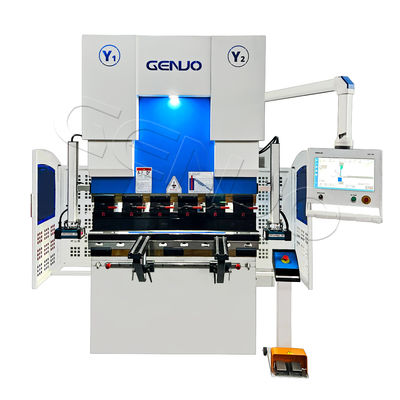

GENUO's Excellent ESC series is the latest generation of high-performance synchronized CNC Press Brake.Combining GENUO's independently developed controller,it maximizes value creation and reduces costs.User-friendly operating system and first-class design. Adhering to the philosophy of GENUO
(Details Create Quality).With super quality and high precision, it also has a huge competitive advantage.
More convenient to use, high cost performance!
|
ETC-16T is a new generation of performance bending control system of GENUO dedicated to synchronous press brakes. connected to the automatic production line as a bending unit. operation,to the greatest extent freefrom manual intervention, improve the accuracy and efficiency of the equipment. |
♦ 15.6 "LED real color LCD screen with friendly man-machine interface, menu operation is easy to learn and easy to use.
♦ The Linux operating system is stable and reliable,High sensitivity resistive touch screen, support glove operation.
♦ Intelligent algorithm and Flexible pro-gramming, Automatically calculate the bending process, three modes for you to choose from.
|
Auto Crowing System :To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for possible tooling wear to maintain parallel contacting surfaces. CNC crowning systems allow the press brake control to be pre-programmed with machine characteristics and defection data. Adjust the calculate and setting accordingly for different characteristics of different materials.
Backgauge System:Establishing the right back gauge for your projects will allow for increased part production and precision.From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost, the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.
|
LASER Safety Guards
|
CNC Sheet Follower
Suitable for all kinds of large sheet metal,especially thin metal sheet. Perfect to maintain synchronization with the sheet during the bending process. |
Angle Measuring System
Automatic angle measuring system |
| Standard Equipment | Optional Equipment |
| ▲ GENUO ETC-16T 4 Axis CNC Control | △ ETC-16T 5 Axis/7 Axis CNC Control |
| ▲ Integral welded rigid high tensile steel frame | △ DSP or SDKELI Lasersafe protection guard |
| ▲ High precision Y1,Y2 axis synchronized closed-loop feedback | △ Energy saving & low noise main servo SVP control |
| ▲ Accurate X axis back gauge system | △ 2 Axis(X,R) or 4-Axis (X,R,Z1,Z2)back gauge |
| ▲ CNC Motorized crowning system | △ The CNC Bending Sheet Follower |
| ▲ European-style punch and 4V/2V/1V Dies | △ WILA type top and bottom tool clamping system |
| ▲ Fast punch clamps and movable sliding front support | △ Bending tools management cabinet or trolley |
| A | B | D | E | C | |||||
| Model | Nominal Pressure | Length of Table | Distance Between Columns | Throat Death | Open Height | Ram Strokes | Motor Power | Approx Weight | Overall Dimension |
| ESC | (KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | (kg) | (L x W x H)(mm) |
| 40T/1600 | 400 | 1600 | 1250 | 300 | 420 | 150 | 4 | 2800 | 1950*1750*2350 |
| 63T/2500 | 630 | 2500 | 1960 | 320 | 420 | 150 | 5.5 | 4200 | 2850*1750*2350 |
| 80T/2500 | 800 | 2500 | 1960 | 350 | 480 | 200 | 7.5 | 4500 | 2850*1850*2450 |
| 100T2500 | 1000 | 2500 | 2000 | 400 | 480 | 200 | 7.5 | 5300 | 2850*1850*2500 |
| 100T/3200 | 1000 | 3200 | 2600 | 400 | 480 | 200 | 7.5 | 6500 | 3850*1850*2600 |
| 125T/2500 | 1250 | 2500 | 2000 | 400 | 480 | 200 | 7.5 | 5500 | 3000*1850*2500 |
| 125T/3200 | 1250 | 3200 | 2600 | 400 | 480 | 200 | 11 | 7000 | 3850*1850*2600 |
| 125T/4000 | 1250 | 4000 | 3200 | 400 | 480 | 200 | 11 | 8500 | 4610*1850*2600 |
| 160T/3200 | 1600 | 3200 | 2600 | 400 | 480 | 200 | 11 | 8800 | 3900*1900*2600 |
| 160T/4000 | 1600 | 4000 | 3200 | 400 | 480 | 200 | 11 | 10000 | 4650*1900*2700 |
| 200T/3200 | 2000 | 3200 | 2600 | 400 | 480 | 200 | 15 | 11600 | 3900*1900*2700 |
| 200T/4000 | 2000 | 4000 | 3200 | 400 | 480 | 200 | 15 | 14000 | 4700*1900*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 400 | 480 | 200 | 15 | 16000 | 5800*1900*2900 |
| 200T/6000 | 2000 | 6000 | 4900 | 400 | 480 | 200 | 15 | 18000 | 6800*1900*3000 |
| 250T/3200 | 2500 | 3200 | 2600 | 400 | 520 | 250 | 18.5 | 12500 | 3900*2100*2800 |
| 250T/4000 | 2500 | 4000 | 3200 | 400 | 520 | 250 | 18.5 | 15000 | 4700*2100*2900 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 520 | 250 | 18.5 | 17000 | 5800*2100*3000 |
| 250T/6000 | 2500 | 6000 | 4900 | 500 | 520 | 250 | 18.5 | 20000 | 6500*2100*3100 |
| 320T/3200 | 3200 | 3200 | 2600 | 400 | 520 | 250 | 22 | 14500 | 4000*2100*3000 |
| 320T/4000 | 3200 | 4000 | 3200 | 400 | 520 | 250 | 22 | 17500 | 4800*2200*3200 |
| 320T/5000 | 3200 | 5000 | 4000 | 500 | 520 | 250 | 22 | 20000 | 5800*2200*3400 |
| 320T/6000 | 3200 | 6000 | 4900 | 500 | 520 | 250 | 22 | 23500 | 6500*2200*3600 |
| 400T/4000 | 4000 | 4000 | 3200 | 500 | 600 | 320 | 30 | 22000 | 4800*2300*3500 |
| 400T/6000 | 4000 | 6000 | 4900 | 500 | 600 | 320 | 30 | 31000 | 6500*2300*3800 |
